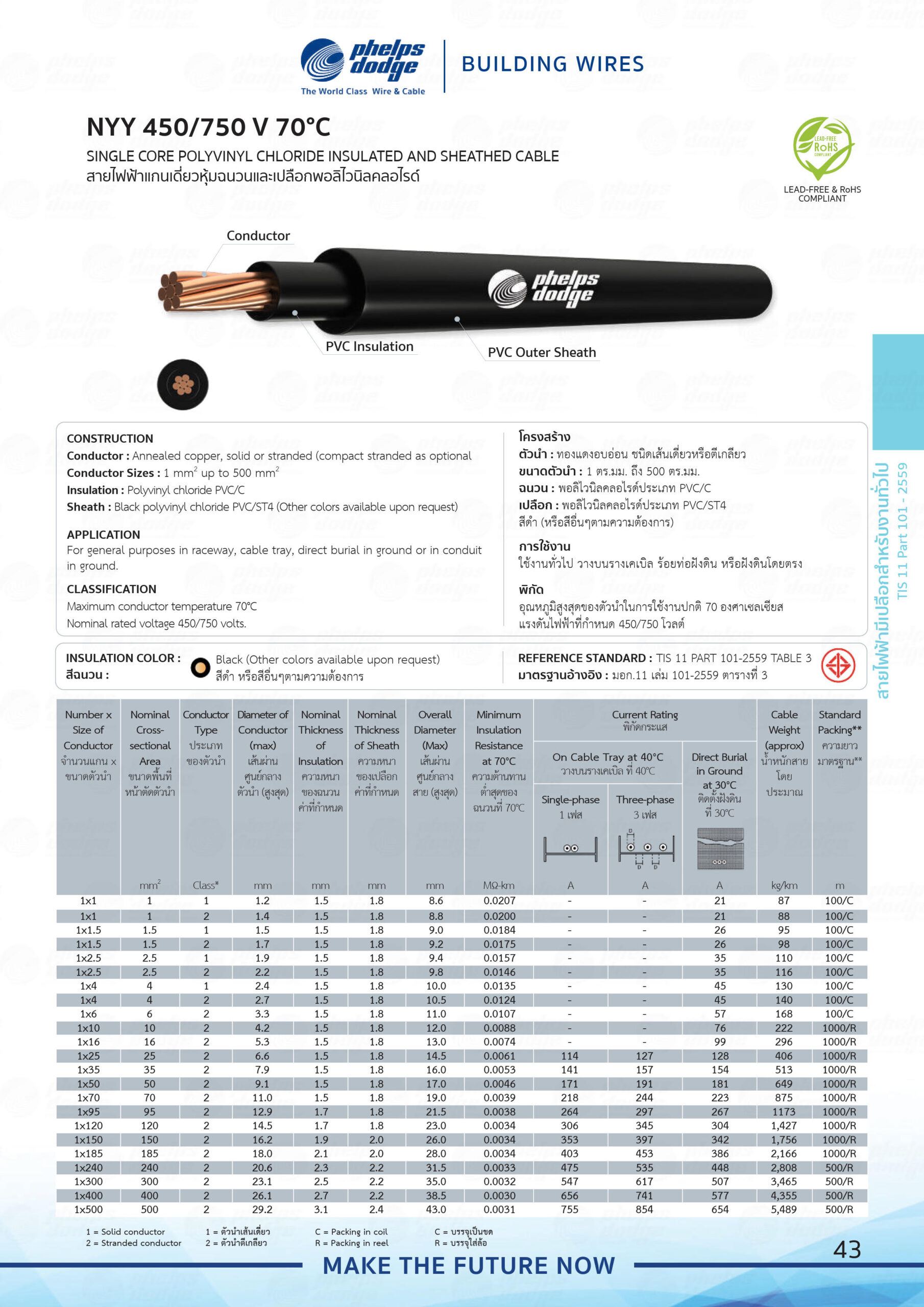

Cable name : PHELPS DODGE CABLE TYPE NYY
| Cable Structure : | 450/750 V 70 oC PVC/C INSULATED AND PVC/ST4 SHEATHED, SINGLE CORE |
| Conductor : | Annealed copper, solid or stranded (concentric or compact as requested) |
| Conductor Sizes: | 1 mm2 up to 500 mm2 |
| Insulation : | Black polyvinyl chloride PVC/C (Other colors available upon request ) |
| Application : | For installation exposed, or in raceway,dry location, |
| or direct burial in ground. |
