การออกแบบและติดตั้งสายไฟฟ้าในระบบอุตสาหกรรมทั่วไป ตลอดจนอุตสาหกรรมปิโตรเคมี วัสดุพอลิเมอร์ น้ำมัน ก๊าซธรรมชาติ
ต้องคำนึงถึงประเภทของสายไฟชนิดพิเศษที่มีความเหมาะสมต่อระบบอุตสาหกรรม เครื่องจักรที่ใช้งาน ระบบรักษาความปลอดภัย ระบบป้องกันไฟไหม้ เพื่อให้กระบวนการผลิตในอุตสาหกรรมเป็นไปได้อย่างถูกต้อง สะดวก และ ปลอดภัยสูงสุด
ดังนั้นควรเลือกใช้สายไฟฟ้าที่ผลิตได้ถูกต้องตรงมาตรฐานกำหนด คุณภาพสูง และ มีความปลอดภัยสูงสุด เพื่อให้ปลอดภัยต่อผู้ใช้งาน นอกจากนั้นควรพิจารณาถึงวัตถุดิบที่ใช้ในการผลิตด้วย ซึ่งได้แก่
- ตัวนำทองแดง มีค่าความนำไฟฟ้าที่ดีเยี่ยม โดย Phelps dodge เลือกใช้ทองแดงบริสุทธิ์ 99.99% ซึ่งเป็นเกรดที่ดีที่สุด
- ฉนวนของสายไฟเป็นฉนวน Cross-linked polyethylene(XLPE) ทึ่ต้องมีความทนทาน และทนความร้อนได้สูงถึง 90 องศาเซลเซียส
สายไฟในกลุ่ม Industrial,Oil&Gas and Petrochemical ประกอบไปด้วยสายไฟฟ้าแรงดันต่ำ สายไฟฟ้าแรงดันปานกลาง และสายไฟฟ้าแรงดันต่ำที่มีคุณสมบัติพิเศษชนิดทนไฟ ไม่ลามไฟ มีควันน้อย และไม่มีก๊าซพิษ รวมไปถึงสายไฟฟ้าที่ต้องการคุณสมบัติพิเศษเพื่อป้องกันน้ำ ป้องกันไอระเหยหรือการกัดกร่อนจากสารเคมี และอาจมีการเสริมโครงสร้างโลหะเพื่อรับแรงกระแทกที่อาจเกิดขึ้นจากการติดตั้ง
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR THREE CORES WITH COPPER TAPE SHIELD |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 – 400 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : PHELPS DODGE CABLE TYPE PdsolarTec Photovoltaic (PV) Cable Type H1Z2Z2-K
| Cable Structure: | 1.5(1.8) kV DC XLPE INSULATED AND XLPE SHEATHED,SINGLE CORe |
| Conductor : | Flexible tinned copper conductor class5 |
| Conductor Sizes: | 2.5 up to 240 sq.mm. |
| Insulation : | Cross-linked polyethylene (XLPE) Outer Sheath: Cross linked polyethylene (XLPE) |
| Application : | Photovoltaic (PV) Cables cables for interconnecting at DC side of photovoltaic systems such as solar panel arrays. The cables are suitable for permanent use both indoor and outdoor, for free movable, free hanging and fixed installation in conduits,in trunks, in/under plaster as well as in appliances. |
Price List
Cable name: PHELPS DODGE CABLE TYPE CV
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND |
| PVC SHEATHED POWER CABLES (TYPE CV), SINGLE CORE | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes : | (10 up to 630 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Natura |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. |
Cable name : PHELPS DODGE CABLE TYPE CV
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND |
| PVC SHEATHED POWER CABLES (TYPE CV), SINGLE CORE | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes : | (10 up to 630 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Natura |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. | |
| Sheath : | Polyethylene (PE/ST7), Flame retardant |
| polyvinyl chloride (FR-PVC) in accordance with | |
| IEC 60332-3 |
ชื่อสาย : CVV-S
| โครงสร้างสาย : | สายไฟฟ้าสำหรับวงจรควบคุม ตัวนำทองแดงสายอ่อน หุ้มฉนวน PVC เปลือก PVC และชิลด์ด้วยเทปทองแดง |
| แรงดัน : | 600 V |
| จำนวนแกน : | 2 – 30 แกน |
| ขนาด : | 1.5 – 6 ตร.มม. |
| มาตรฐาน : | JIS C-3401 |
| การใช้งาน : | ใช้ต่อวงจรระบบควบคุมอุปกรณ์ไฟฟ้าและเครื่องจักร วางบนรางเคเบิล หรือเดินร้อยท่อ |
Cable name : PHELPS DODGE CABLE TYPE CVV
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL CABLES |
| (TYPE CVV) IEC 60502-1 | |
| Conductor : | Concentric stranded annealed copper Optional : Flexible |
| or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control circuits. |
| Suitable for indoor and outdoor installation in wet or dry locations, | |
| in conduit, duct, trench and cable tray. |
Cable name : PHELPS DODGE CABLE TYPE CVV
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL |
| CABLES (TYPE CVV) JIS C3401 | |
| Conductor : | Flexible annealed copper |
| Optional : Concentric stranded or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control |
| circuits. Suitable for indoor and outdoor installation in | |
| wet or dry locations, in conduit, duct, trench and cable tray. |
Cable name : PHELPS DODGE CABLE TYPE CVV-S
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL CABLES |
| WITH COPPER TAPE SHIELD (TYPE CVV-S) IEC 60502-1 | |
| Conductor : | Concentric stranded annealed copper |
| Optional : Flexible or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control |
| circuits. Suitable for indoor and outdoor installation in | |
| wet or dry locations, in conduit, duct, trench and cable | |
| tray. With Copper tape shield, the cable is suitable for | |
| installation in the places where special electrical | |
| interference protection is required. |
Cable name :PHELPS DODGE CABLE TYPE CVV-S
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL CABLES |
| WITH COPPER TAPE SHIELD (TYPE CVV-S) JIS C3401 | |
| Conductor : | Flexible annealed copper Optional : |
| Concentric stranded or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control |
| circuits. Suitable for indoor and outdoor installation in | |
| wet or dry locations, in conduit, duct, trench and cable | |
| tray. With Copper tape shield, the cable is suitable for | |
| installation in the places where special electrical | |
| interference protection is required. |
Cable name: PHELPS DODGE CABLE TYPE CV-AWA
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND PVC SHEATHED POWER CABLES |
| WITH ALUMINUM WIRE ARMOUR (TYPE CV-AWA), SINGLE CORE | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes : | (10 up to 630 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Natural |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. With metallic armour, the | |
| cable is suitable for installation in areas where special | |
| mechanical protection is required. |

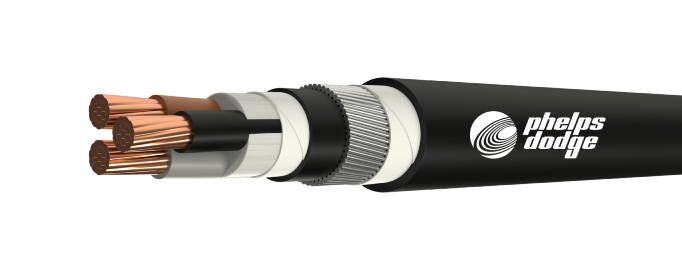

Cable name : PHELPS DODGE CABLE TYPE CV-SWA
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND PVC SHEATHED POWER CABLES |
| WITH STEEL WIRE ARMOUR (TYPE CV-SWA), TWO CORES | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes: | (10 up to 400 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Brown and Light Blue |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. With metallic armour, the | |
| cable is suitable for installation in areas where special | |
| mechanical protection is required. |
Cable name : CVV-SWA
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL CABLES |
| WITH STEEL WIRE ARMOUR (TYPE CVV-SWA) IEC 60502-1 | |
| Conductor : | Concentric stranded annealed copper |
| Optional : Flexible or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control |
| circuits. Suitable for indoor and outdoor installation in | |
| wet or dry locations, in conduit, duct, trench and cable | |
| tray. With metallic armour, the cable is suitable for | |
| installation in areas where special mechanical protection is required. |
Cable name : ALUMINIUM STRANDED CONDUCTOR CROSS-LINKED
| Cable Structure : | POLYETHYLENE INSULATED |
| Conductor : | Compact stranded hard drawn Aluminium wire. |
| Conductor Sizes : | 35 – 240 mm2 |
| Insulation : | Track resistant cross-linked polyethylene (Black) |
| Application : | For used in primary aerial cable on pole. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR WITH COPPER TAPE SHIELD |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 – 1200 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR WITH COPPER WIRE SHIELD |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 – 1200 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks. Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | 3.6/6 (7.2) kV COPPER CONDUCTOR THREE CORES WITH STEEL WIRE ARMOUR |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 -400 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR THREE CORES WITH STEEL WIRE ARMOUR |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 -400 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR WITH DOUBLE ALUMINIUM TAPE ARMOUR |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 – 1200 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks. Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR THREE CORES WITH DOUBLE STEEL TAPE ARMOUR |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 -400 mm2 |
| Insulation : | Cross-linked polyethylene |
| Application : | Preferably used for urban networks. Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : MEDIUM VOLTAGE CROSS-LINKED POLYETHYLENE CABLE
| Cable Structure : | COPPER CONDUCTOR WITH ALUMINIUM WIRE ARMOUR |
| Conductor : | Compact round stranded copper |
| Conductor Sizes : | 35 – 1200 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
Cable name : 600/1000 V* FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | SINGLE CORE CABLES (NON-SHEATHED) |
| Conductor : |
Round concentric lay stranded |
| or round compact stranded copper | |
| Conductor Sizes : | 1.5 – 630 mm2 |
| Insulation : | Flame retardant Low smoke & Halogen |
| free Cross-linked polyethylene (LSHF-XLPE : EI5). | |
| Colour : Orange Colour (Other colours to special order). | |
| Application : | For fixed installation in electrical |
| cabinet, conduit and wire way which provide flame retardant, | |
| low smoke, low toxic emission and long term | |
| cabinet, conduit and wire way which circuit integrity under fire. |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | SINGLE CORE CABLES |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes : | 1.5 – 630 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Natural Colour. |
| Application : | For power distribution installed in air, conduit, duct, trench and tray which |
| Application : | For power distribution installed in air, conduit, duct, trench and tray which |
| integrity under fire. |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | 2,3,4,5 CORES CABLES |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes: | 1.5 – 400 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Brown, Light Blue Colour. |
| Application : | For power distribution installed in air, conduit, duct, trench and tray which |
| provide flame retardant, low smoke,low toxic emission and long-term circuit | |
| integrity under fire |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | SINGLE CORE CABLES WITH ARMOUR |
| Conductor: |
Round concentric lay stranded |
| or Compact round stranded copper | |
| Conductor Sizes : | 1.5 – 630 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Natural Colour. |
| Application : | For power distribution installed in air,conduit, duct, trench and tray which |
| provide flame retardant, low smoke,low toxic emission and long-term | |
| circuit integrity under fire.With metallic armour, the cable | |
| is suitable for installation in areas where special mechanical | |
| protection is required. |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | TWO CORES CABLES WITH ARMOUR |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes : | 1.5 – 400 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Brown, Light Blue Colour. |
| Application : | For power distribution installed in air,conduit, duct, trench and tray which |
| provide flame retardant, low smoke,low toxic emission and long-term circuit | |
| integrity under fire. With metallic armour,the cable is suitable for installation | |
| in areas where special mechanical protection is required. |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | CONTROL CABLES WITH METALLIC SHIELD |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes: | 1.5-6mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Black Colour with marked core number. |
| Application : | For supervisory electrical equipment,station control circuits installed in air,conduit, |
| duct, trench and tray which provide flame retardant, low smoke, | |
| low toxic emission and long-term circuit integrity under fire |
Cable name : 600/1000 V* FLAME RETARDANT LOW SMOKE & HALOGEN FREE
| Cable Structure: | SINGLE CORE CABLES (NON-SHEATHED) |
| Conductor : |
Round concentric lay stranded |
| or round compact stranded copper | |
| Conductor Sizes: | 1.5-630 mm2 |
| Insulation: | Flame retardant Low smoke & Halogen |
| free Cross-linked polyethylene (LSHF-XLPE : EI5). | |
| Colour : Black Colour (Other colours to special order). | |
| Application: | For fixed installation in electrical cabinet, conduit and wire way which |
| provide flame retardant, low smoke and low toxic emission under fire. |
Cable name : 0.6/1(1.2) kV FLAME RETARDANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | SINGLE CORE CABLES |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes : | 1.5-630 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Natural Colour. |
| Application: | For power distribution installed in air,conduit, duct, trench and tray which |
| provide flame retardant, low smoke and low toxic emission under fire |
Cable name : 0.6/1(1.2) kV FLAME RETARDANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | MULTI CORE CABLES |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes : | 1.5-400 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Brown, Light Blue Colour. |
| Application: | For power distribution installed in air, conduit, duct, trench and tray which |
| provide flame retardant, low smoke and low toxic emission under fire |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | SINGLE CORE CABLES WITH ARMOUR |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes : | 1.5-630 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) : Natural Colour. |
| Application : | For power distribution installed in air,conduit, duct, trench and tray which |
| provide flame retardant, low smoke and low toxic emission under fire. | |
| With metallic armour, the cable is suitable for installation in areas where special | |
| mechanical protection is required. |
Cable name : 0.6/1(1.2) kV FIRE RESISTANT LOW SMOKE & HALOGEN FREE
| Cable Structure: | MULTI CORE CABLES WITH ARMOUR |
| Conductor : |
Round concentric lay stranded or Compact round stranded copper |
| ConductorSizes: | 1.5-400 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Brown, Light Blue Colour. |
| Application : | For power distribution installed in air,conduit, duct, trench and tray which provide flame retardant, low smoke |
| and low toxic emission under fire.With metallic armour, the cable is suitable for installation in areas where special | |
| mechanical protection is required. |
Cable name : 0.6/1(1.2) kV FLAME RETARDANT LOW SMOKE & HALOGEN FREE
| Cable Structure : | THREE CORES CABLES |
| Conductor : | Round concentric lay stranded or Compact round stranded copper |
| Conductor Sizes: | 1.5-6 mm2 |
| Insulation : | Cross-linked polyethylene (XLPE) Colour : Black Colour with marked |
| core number. | |
| Application : | For supervisory electrical equipment,station control circuits installed in air, |
| conduit, duct, trench and tray which provide flame retardant, low smoke | |
| and low toxic emission under fire. |
