| Cable Structure: | 450/750 V 70 oC PVC/C INSULATED, SINGLE CORE |
| Conductor : | Annealed copper, solid or stranded |
| (concentric or compact as requested) | |
| Conductor Sizes: | 1.5 mm2 up to 400 mm2 |
| Insulation : | Polyvinyl chloride type PVC/C (Any color as requested) |
| Application : | Building wiring for installation on |
| insulator or in raceway dry location. |
| Cable Structure : | COPPER CONDUCTOR THREE CORES WITH COPPER TAPE SHIELD |
| Conductor : | Compact round stranded copper. |
| Conductor Sizes : | 35 – 400 mm2 |
| Insulation : | Cross-linked polyethylene. |
| Application : | Preferably used for urban networks.Exposed in aerial, direct burial, |
| conduit, open tray and underground duct installation. |
| Cable Structure: | 1.5(1.8) kV DC XLPE INSULATED AND XLPE SHEATHED,SINGLE CORe |
| Conductor : | Flexible tinned copper conductor class5 |
| Conductor Sizes: | 2.5 up to 240 sq.mm. |
| Insulation : | Cross-linked polyethylene (XLPE) Outer Sheath: Cross linked polyethylene (XLPE) |
| Application : | Photovoltaic (PV) Cables cables for interconnecting at DC side of photovoltaic systems such as solar panel arrays. The cables are suitable for permanent use both indoor and outdoor, for free movable, free hanging and fixed installation in conduits,in trunks, in/under plaster as well as in appliances. |
| Cable Structure : | 300/500 V 70 oC PVC/C INSULATED, SINGLE CORE |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.5 mm2 up to 1 mm2 |
| Insulation : | Polyvinyl chloride type PVC/C (Any color as requested) |
| Application : | Building wiring, for installation on insulator or in raceway and widely used |
| in electrical home apparatus. |
| Cable Structure : | 300/500 V 70 oC PVC/C INSULATED AND PVC/ST4 DOUBLE SHEATHED, TWO CORES |
| Conductor : | Annealed copper, solid or stranded (concentric or compact as requested) |
| Conductor Sizes : | 1.5 mm2 up to 35 mm2 |
| Insulation : | Polyvinyl chloride PVC/C (Light Blue and Brown color) |
| Application : | For installation exposed, or in raceway,wet or dry location. |
| Do not allow for underground installing neither directly burial or in conduit in ground |
| Cable Structure : | 450/750 V 70 oC PVC/C INSULATED AND PVC/ST4 SHEATHED, SINGLE CORE |
| Conductor : | Annealed copper, solid or stranded (concentric or compact as requested) |
| Conductor Sizes: | 1 mm2 up to 500 mm2 |
| Insulation : | Black polyvinyl chloride PVC/C (Other colors available upon request ) |
| Application : | For installation exposed, or in raceway,dry location, |
| or direct burial in ground. |
| Cable Structure : | 450/750 V 70 oC PVC/D INSULATED AND PVC/ST5 SHEATHED, FLEXIBLE SINGLE CORE |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 4 mm2 up to 35 mm2 |
| Insulation : | Black polyvinyl chloride PVC/D (Other colors available upon request ) |
| Application : | For mobile-electrical equipment used in |
| conduit, open tray and underground duct installation.factories, farm or household appliances. |
| Cable Structure : | 300/300 V 70 oC PVC/D INSULATED AND |
| PVC/ST5 SHEATHED ROUND TYPE, FLEXIBLE TWO CORES | |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.5 mm2 up to 0.75 mm2 |
| Insulation : | Polyvinyl chloride PVC/D (Light Blue and Brown color) |
| Application : | For small indoor electrical appliances. |
| Cable Structure : | 300/500 V 70 oC PVC/D INSULATED AND |
| PVC/ST5 SHEATHED FLAT TYPE, FLEXIBLE TWO CORES | |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.75 mm2 up to 2.5 mm2 |
| Insulation : | Polyvinyl chloride PVC/D (Light Blue and Brown color) |
| Application : | For small indoor electrical appliances. |
| Cable Structure : | 450/750 V 70 oC PVC/C INSULATED, SINGLE CORE |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 1.5 mm2 up to 240 mm2 |
| Insulation : | Polyvinyl chloride type PVC/C |
| (Any color as requested) | |
| Application : | Building wiring for installation on |
| insulator or in raceway, dry location. |
| Cable Structure : | 300/500 V 70 oC PVC/C INSULATED, SINGLE CORE |
| Conductor : | Annealed solid copper |
| Conductor Size: | 0.5 mm2 up to 1 mm2 |
| Insulation : | Polyvinyl chloride type PVC/C |
| (Any color as requested) | |
| Application : | Building wiring, for installation on insulator or in raceway. |
| Cable Structure : | 300/500 V 70 oC PVC/C INSULATED, SINGLE CORE |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.5 mm2 up to 1 mm2 |
| Insulation : | Polyvinyl chloride type PVC/C (Any color as requested) |
| Application : | Building wiring, for installation on insulator or in raceway and |
| widely used in electrical home apparatus. |
| Cable Structure : | 300/500 V 90 oC PVC/E INSULATED HEAT RESISTANT, SINGLE CORE |
| Conductor : | Annealed solid copper |
| Conductor Sizes: | 0.5 mm2 up to 2.5 mm2 |
| Insulation : | Heat resistant polyvinyl chloride type PVC/E (Any color as requested) |
| Application : | Building wiring, for installation on insulator or in raceway. |
| Cable Structure : | 300/500 V 90 oC PVC/E INSULATED HEAT RESISTANT, SINGLE CORE |
| Conductor : | Annealed Flexible Copper |
| Conductor Sizes: | 0.5 mm2 up to 2.5 mm2 |
| Insulation : | Heat resistant polyvinyl chloride type PVC/E (Any color as requested) |
| Application : | Building wiring, for installation on insulator or in raceway and widely used |
| in electrical home apparatus. |
| Cable Structure : | 300/300 V 90 oC PVC/E INSULATED AND PVC/ST10 SHEATHED, |
| HEAT RESISTANT, ROUND TYPE FLEXIBLE TWO CORES | |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.5 mm2 up to 0.75 mm2 |
| Insulation : | Heat resistant polyvinyl chloride PVC/E (Light Blue and Brown color) |
| Application : | For mobile-electrical equipment used in |
| factories, farm or household appliances. |
| Cable Structure : | 300/500 V 90 oC PVC/E INSULATED AND PVC/ST10 SHEATHED, |
| HEAT RESISTANT, FLEXIBLE THREE CORES | |
| Conductor : | Annealed flexible copper |
| Conductor Sizes: | 0.75 mm2 up to 2.5 mm2 |
| Insulation : | Heat resistant polyvinyl chloride PVC/E (Light Blue, Brown and |
| Green with yellow stripe color /or Brown,Black and Gray color) | |
| Application : | For mobile-electrical equipment used in |
| conduit, open tray and underground duct installation. | |
| factories, farm or household appliances. |
| Cable Structure : | 300/300 V 70 oC PVC/D DOUBLE INSULATED, FLEXIBLE SINGLE CORE |
| Conductor : | Annealed flexible copper |
| Conductor Sizes : | 0.5 mm2 up to 0.75 mm2 |
| Insulation : | (1st layer) : Polyvinyl chloride PVC/D (Natural color) |
| (2nd layer) : Polyvinyl chloride PVC/D (Green) | |
| Application : | For used in dry room for small indoor |
| decorative lighting chains. |
| Cable Structure : | 750 V 70 oC PVC INSULATED, SINGLE CORE |
| Conductor: | Concentric hard drawn aluminium |
| Conductor Sizes : | 10mm2 up to 500 mm2 |
| Insulation : | Polyvinyl chloride |
| Application : | For used in outdoor area |

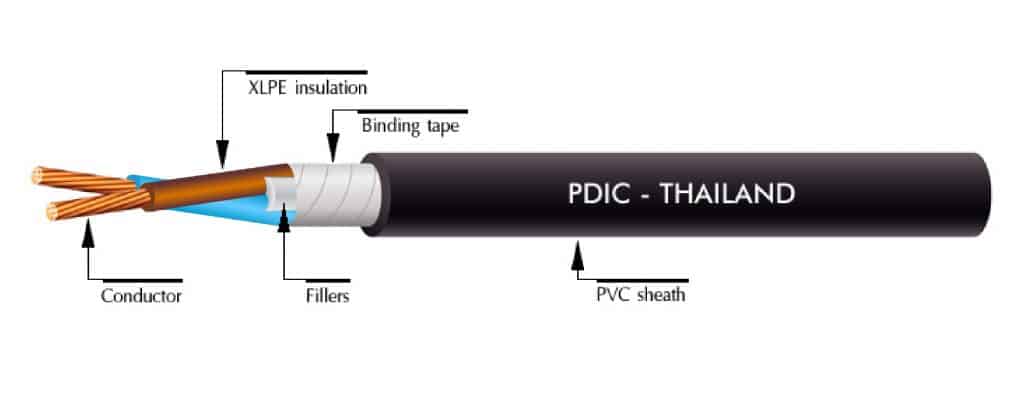

| Cable Structure : | 0.6/1 kV XLPE INSULATED AND |
| PVC SHEATHED POWER CABLES (TYPE CV), SINGLE CORE | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes : | (10 up to 630 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Natura |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. |
| Cable Structure : | 0.6/1 kV XLPE INSULATED AND |
| PVC SHEATHED POWER CABLES (TYPE CV), SINGLE CORE | |
| Conductor : | Concentric stranded annealed copper (1.5 up to 6 mm2) |
| or Compact round stranded annealed copper | |
| Conductor Sizes : | (10 up to 630 mm2) |
| Insulation : | Cross-linked polyethylene (XLPE) Color : Natura |
| Application : | For general purpose power distribution in wet or dry |
| locations, installed in air, conduit, duct, trench, cable | |
| tray or direct burial in ground. | |
| Sheath : | Polyethylene (PE/ST7), Flame retardant |
| polyvinyl chloride (FR-PVC) in accordance with | |
| IEC 60332-3 |
