Cable name : PHELPS DODGE CABLE TYPE CVV-S
| Cable Structure : | 600V PVC INSULATED AND SHEATHED CONTROL CABLES |
| WITH COPPER TAPE SHIELD (TYPE CVV-S) IEC 60502-1 | |
| Conductor : | Concentric stranded annealed copper |
| Optional : Flexible or solid annealed copper | |
| Conductor Sizes : | 1.5 – 6 mm2 |
| Insulation : | Polyvinyl chloride (PVC) Color : Black with core number marking |
| Application : | For supervisory electrical equipment, station control |
| circuits. Suitable for indoor and outdoor installation in | |
| wet or dry locations, in conduit, duct, trench and cable | |
| tray. With Copper tape shield, the cable is suitable for | |
| installation in the places where special electrical | |
| interference protection is required. |

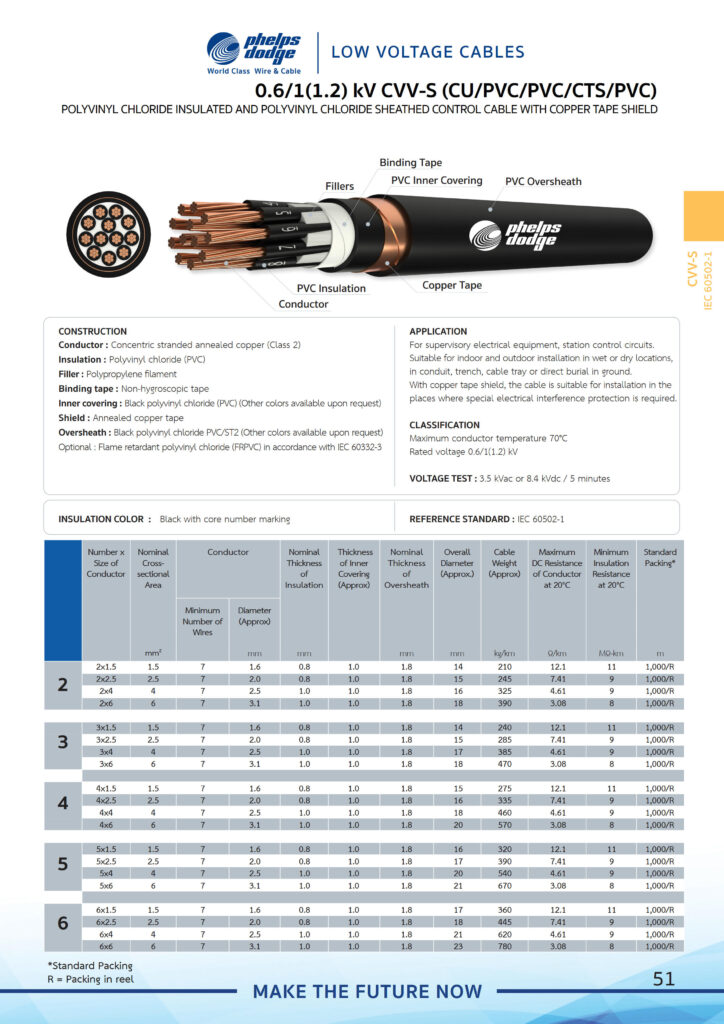

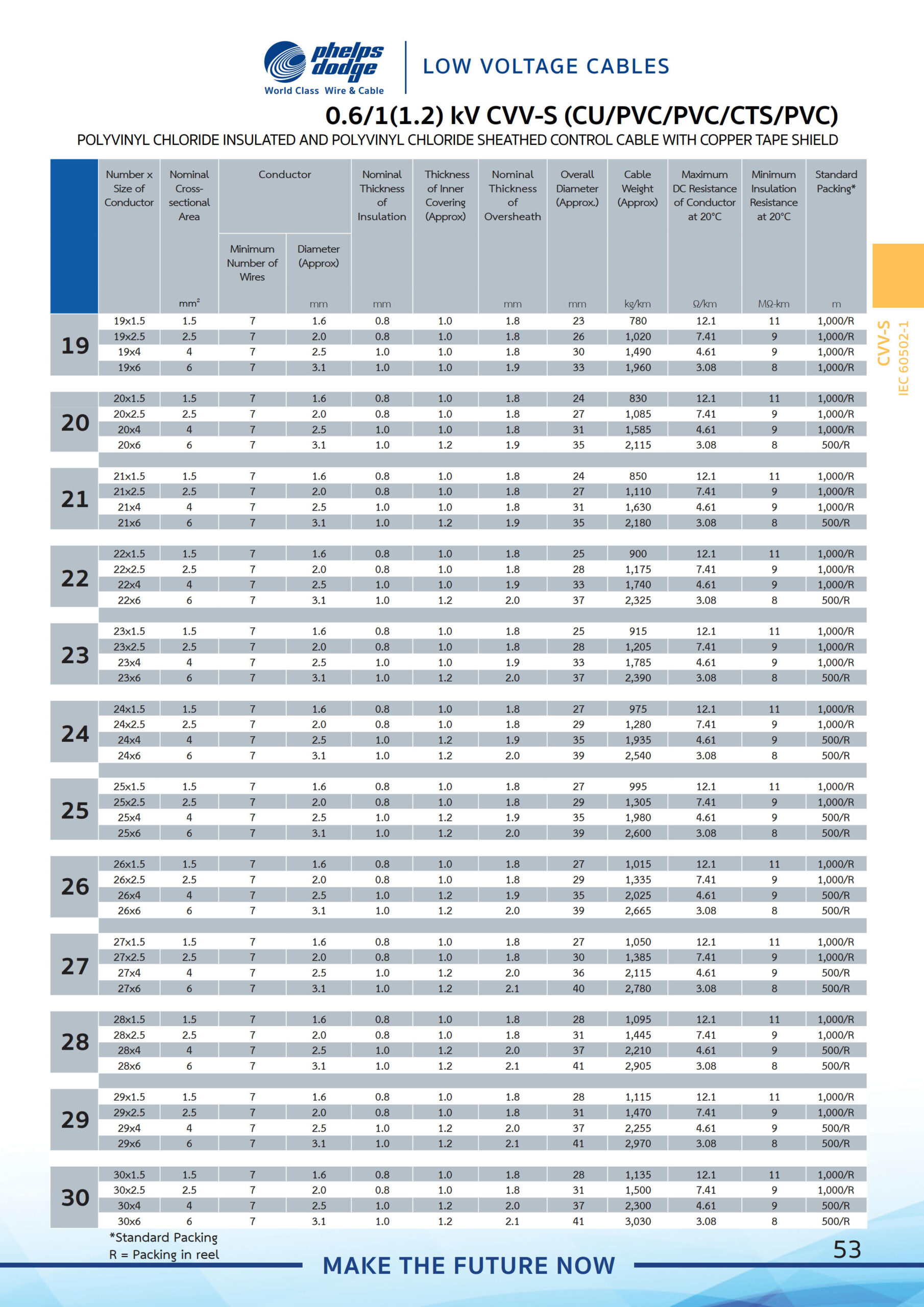

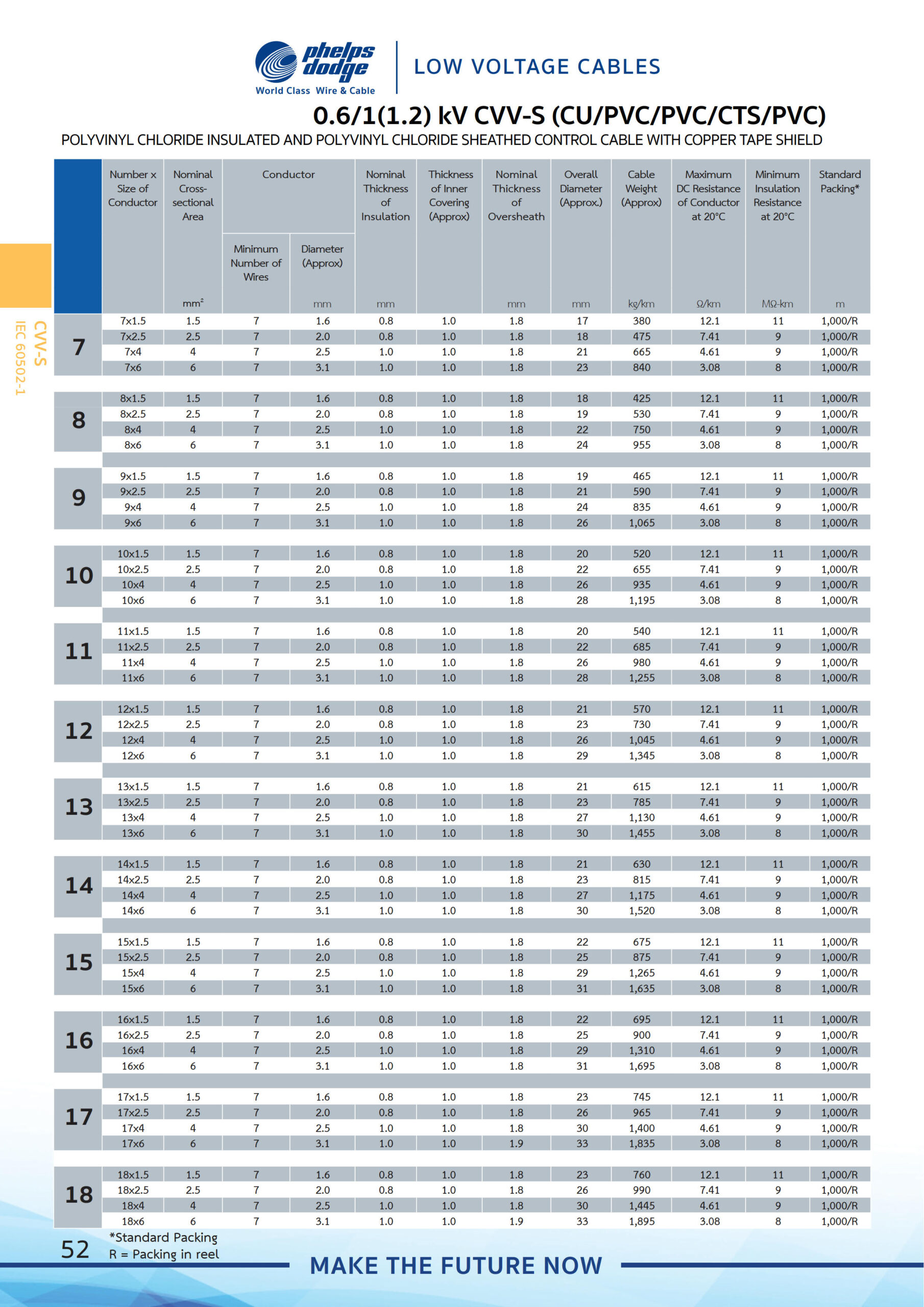

Data Sheet
